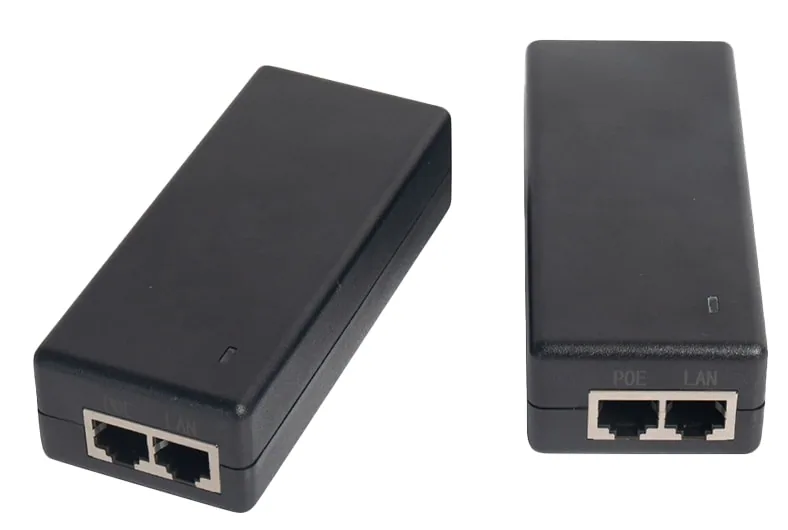

24W 2GE Gigabit PoE Injector
Model: POE48-24

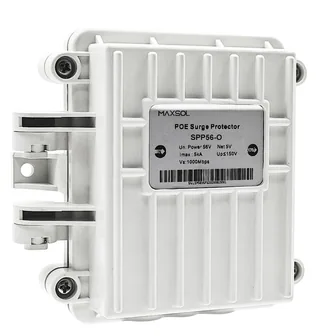

Model: SPP56-O

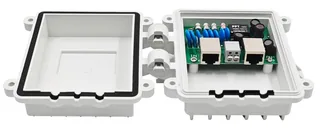

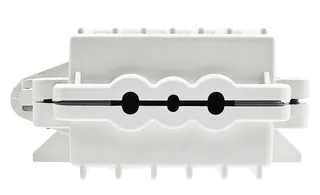

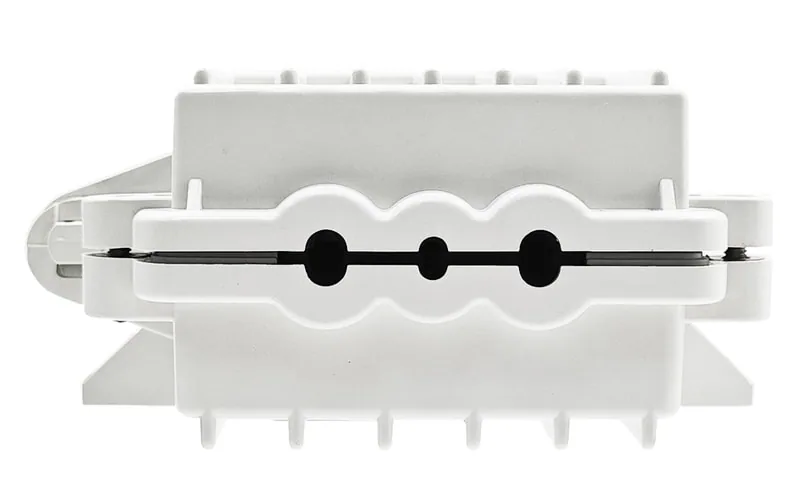

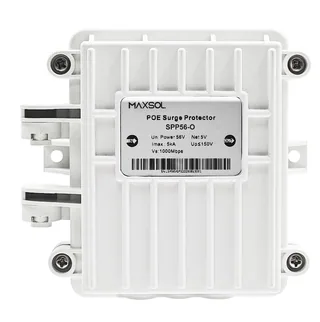

Outdoor POE Surge Protector
IP65 outdoor PoE surge protector with GDT and TVS protection for Gigabit Ethernet power and data lines in CCTV, wireless, and industrial networks.
Key features
- Multi-protection circuits with Gas Discharge Tube (GDT) and TVS technology
- Dual protection design for both common-mode and differential-mode surges
- TVS array technology with low capacitance for high-speed signal transmission
- Multi-strike surge protection capability for enhanced reliability
- IP65-rated enclosure for full outdoor operation
- 100% shielding design with anti-explosion and waterproof protection
- Compact size for easy installation and flexible deployment
Specification
Specification
- Model
- SPP56-O
Electrical Parameter(Network & Power)
- Nominal operating voltage Un
- 56V
- Max. continuous operating voltage Uc
- 65V
- Nominal discharge current (8/20µs), In
- 5kV/2.5kA
- Max. discharge current (8/20µs), Imax
- 5kV
Limiting voltage Up
- Line-line
- ≤100V
- Line-PE
- ≤150V
- Adapt transmission rate
- 1000Mbps
- Insertion loss
- ≤0.3dB
- Protection line
- 1-8
- Response time Ta
- ≤1ns
- Load current
- 850mA
- Application
- 10/100/1000BaseT
- Impedance in series
- ≤0.5Ω
Mechanical characteristics
- Dimension
- 155mm*135mm*55mm
- Weight per unit
- (230±5)g
- IP Level
- IP65
- Wiring(In/Out)
- RJ45(Shielding)cable for both
- Enclosure material
- Stainless steel
- Working conditions
- Operation temp.: -20 ~ 60℃, Storage temp.: -40 ~ 85℃ Relative humidity: 5% ~ 95％
- Standards Compliance
- IEC61000, RoHS
- Protocol Compliance
- 802.3af
- Installation place
- Indoor or Outdoor
Specification
- Model
- SPP56-O
Electrical Parameter(Network & Power)
- Nominal operating voltage Un
- 56V
- Max. continuous operating voltage Uc
- 65V
- Nominal discharge current (8/20µs), In
- 5kV/2.5kA
- Max. discharge current (8/20µs), Imax
- 5kV
Limiting voltage Up
- Line-line
- ≤100V
- Line-PE
- ≤150V
- Adapt transmission rate
- 1000Mbps
- Insertion loss
- ≤0.3dB
- Protection line
- 1-8
- Response time Ta
- ≤1ns
- Load current
- 850mA
- Application
- 10/100/1000BaseT
- Impedance in series
- ≤0.5Ω
Mechanical characteristics
- Dimension
- 155mm*135mm*55mm
- Weight per unit
- (230±5)g
- IP Level
- IP65
- Wiring(In/Out)
- RJ45(Shielding)cable for both
- Enclosure material
- Stainless steel
- Working conditions
- Operation temp.: -20 ~ 60℃, Storage temp.: -40 ~ 85℃ Relative humidity: 5% ~ 95％
- Standards Compliance
- IEC61000, RoHS
- Protocol Compliance
- 802.3af
- Installation place
- Indoor or Outdoor
Recommended Products
More from Power Accessories
Compare related Maxsol products for your next outdoor power or networking project.

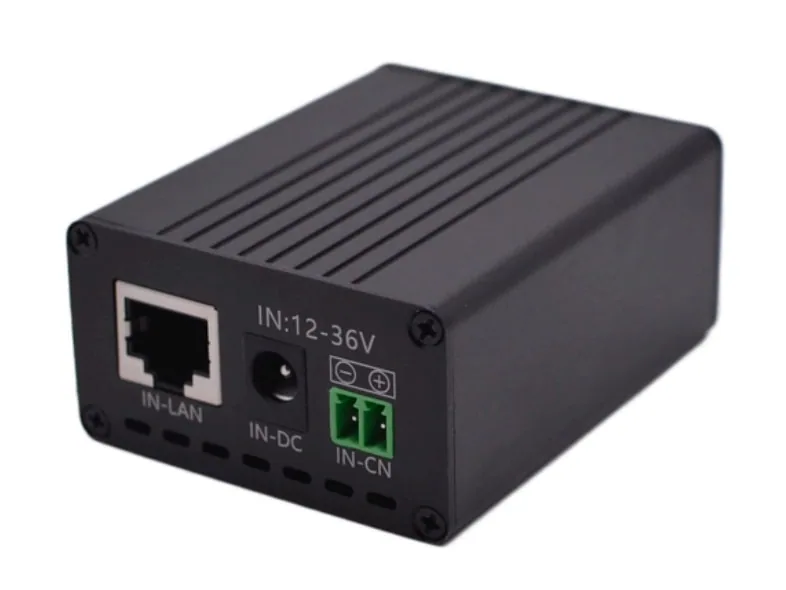

12–36V DC to Adjustable PoE Power Converter
Model: POE24V

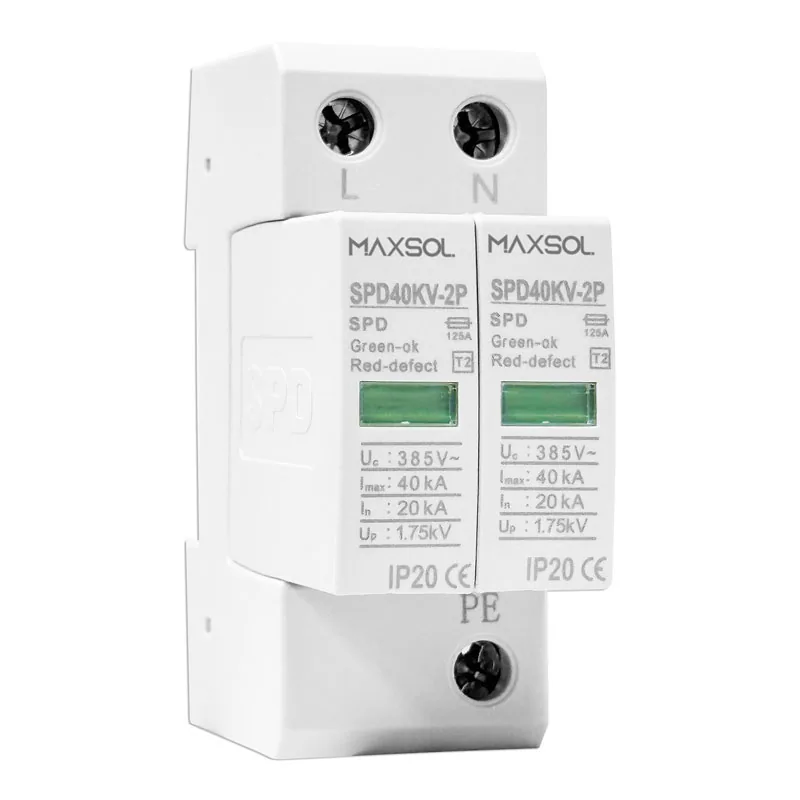

Industrial 20-40kA DIN Rail Surge Protector
Model: SPD40KV-2P

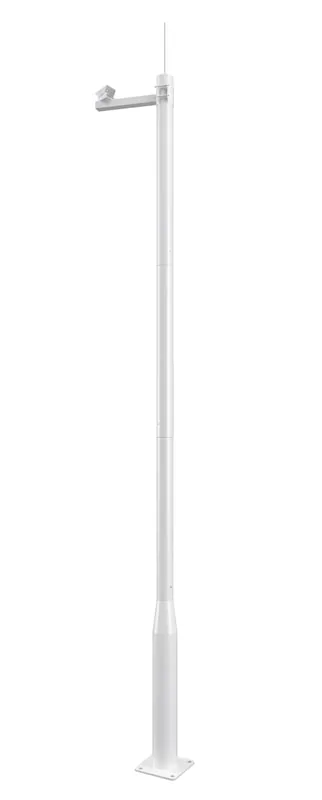

4m Heavy-Duty Modular Surveillance Pole
