20km 5.8GHz Long Range Wireless CPE

Specification

Model

CPE2920

CPU

Qualcomm QCA9563

Wireless chipset

Qualcomm QCA9882

RAM

64MB

Flash

16MB

WLAN standard

IEEE 802.11 a/n/ac, iPoll 3

Radio mode

MIMO 2×2

Radio frequency band

5 GHz: 5.150–5.850 GHz (FCC 5.150–5.250 and 5.725–5.850 GHz)

Tx power

Up to 30dBm (country dependent)

RX sensitivity

-95 ~ -75dBm (country dependent)

Channel size

5, 10, 20, 40, 80 MHz

Modulation schemes

802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK) 802.11 ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK)

Data rates

802.11 ac @ 40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mbps 802.11 ac @ 80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps

Error correction

FEC, LDPC

Duplexing scheme

Time division duplex

40MHz Modulation, Mbps

400, 360, 300, 270, 240, 180, 120, 90, 60, 30

40MHz Tx power, dBm

28, 29, 29, 30, 30, 30, 30, 30, 30, 30

40MHz RX Sensitivity, dBm

-70, -72, -76, -78, -80, -84, -87, -92, -94, -95

80MHz Modulation, Mbps

866, 780, 650, 585, 520, 390, 260, 195, 130, 65

80MHz Tx power, dBm

27, 27, 27, 28, 29, 29, 30, 30, 30, 30

80MHz RX Sensitivity, dBm

-64, -66, -70, -72, -74, -78, -81, -85, -88, -90

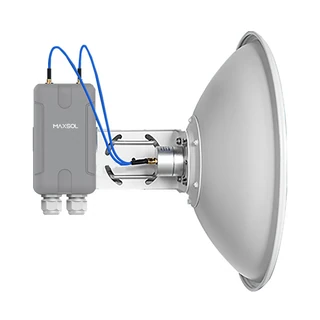

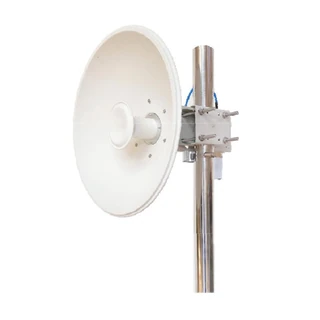

Type

Dual-polarized dish antenna

Gain

29dBi

Interface

10/100/1000 Base-T, RJ45

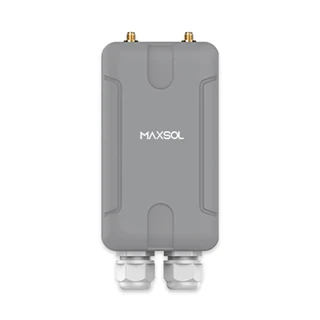

Dimensions

Host: 216 × 102 × 59 mm; antenna: 420 × 420 × 120 mm

Weight

Host: 0.46kg; antenna: 3.4kg

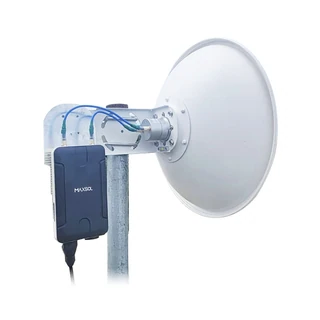

Mounting

Pole mounting bracket included

Power supply

24 VDC passive PoE (AC to 24 VDC adapter included)

Power source

100 – 240V AC

Humidity

5 ~ 90% (non-condensing)

Full load power consumption

7W

Operating temperature

-40°C ~ +65°C

System monitoring

SNMP, Syslog, Web UI, WNMS

Configuration

WebUI, WNMS

Frequency range

4800–6500MHz

Polarization

Dual linear

VSWR

<1.5

Azimuth beamwidth (H pol)

45°

Azimuth beamwidth (V pol)

45°

Elevation beamwidth

45°
