Datasheet
Outdoor Industrial Cabinet

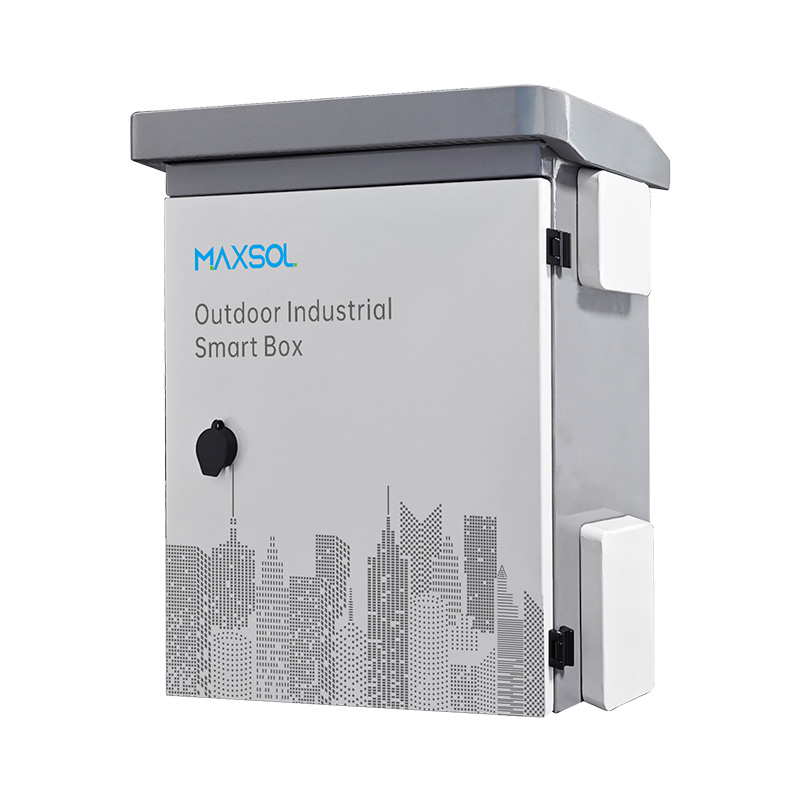

IP65 IK10 Industrial Outdoor Smart Box
ModelIB552
Overview
Heavy‑Duty IP65 IK10 Outdoor Industrial Smart Box For Rugged Environments. Weatherproof And Impact‑Resistant Enclosure Ideal For Protecting Electronics, Control Systems, CCTV, Solar Equipment, And IoT Devices In Industrial Outdoor Applications. Learn More!
Features
- IP65 IK10 Industrial Outdoor Smart Box
- Size: 550x450x280mm
- Material: 1.2mm Galvanized Steel + Powder Coating
- included 4pcs M25 Waterproof Connectors, 3pcs MountingPlates, 1pcs grounding connector
- Support Wall & Pole Mount installation
- Operating Temperature: -40~ 70℃
- Application: Battery,Control, Monitoring, Junction Use
IB552
Specification
Basic Information
- Model
- IB552
- Dimensions (length x width x height)
- 550*450*280mm
- Weight（kg）
- 12.7
- Material
- Hot-dip galvanized steel sheet
- Thickness
- 1.2mm
- IP Level
- IP65
- Color
- White+Gray
- Surface Treatment
- Electrostatic Spraying
- Door
- 1
- Installation
- Pole/Wall Mounting
Function
- Function
Junction, Distribution, Electrical, Battery, Control, Monitoring etc.
Outdoor waterproof Enclosure Box，IPC/Wireless AP mounting hole
Package Content
- BOX
- 1PCS
- Quick Installation Guide
- 1PCS
- Waterproof Connector
- 4PCS
- IP Camera/AP/CPE Mounting Plate
- 4PCS
- Key
- 2PCS
- Grounding Connector
- 1PCS
Installation Accessories
- Installation
- Pole/Wall Mounting
- DIN-rail
- 1PCS
- Inside Mounting Plate
- 2PCS (Removable)
- Pole Mounting Accessories
2*1.2m Stainless Steel Cable Ties (50-350mm in diameter)
2*Stainless Steel Universal Clips
- Option Accessory
- Thermostat Switches of fans or other devices according to the temperature.
